A submersible pump plays an important role in supplying water for homes, farms, irrigation systems, and industrial applications. Since the pump operates underwater, it is not always easy to identify a problem with its motor. Sometimes, the pump suddenly stops working, delivers less water, or trips the electrical supply. These problems may indicate motor damage, but they do not always mean the motor is burnt.
A burnt submersible pump motor can interrupt the water supply and lead to expensive repairs or replacement. Understanding the early warning signs can help you identify possible problems and take action before further damage occurs.
In this guide, we explain how to recognise the signs of a burnt submersible pump motor, what causes motor failure, how to check its condition, and when replacement may be necessary.
What Happens When a Submersible Pump Motor Burns Out?
A submersible pump motor uses electrical energy to rotate the pump and move water from a borewell, well, or underground water source.
Inside the motor, electrical windings create the magnetic field required for operation. These windings are protected by insulation that can withstand normal operating temperatures.
When the motor overheats or experiences an electrical fault, the insulation around the windings may deteriorate. If the insulation fails, it can cause a short circuit, an earth fault, or damage to the motor windings.
In severe cases, the motor stops operating completely. This condition is commonly called motor burnout.
However, not every motor failure involves burnt windings. Problems with the power supply, control panel, cables, or pump components can produce similar symptoms.
7 Common Signs of a Burnt Submersible Pump Motor
Recognising the warning signs can help you determine whether the motor requires professional inspection.
1. The Pump Does Not Start
One of the most common signs of motor trouble is a pump that fails to start even when the electrical supply is available.
If the motor windings are severely damaged, the motor may not operate at all.
However, a pump may also fail to start because of a faulty capacitor, damaged cable, incorrect voltage, or control panel problem.
Before assuming the motor is burnt, a qualified technician should check the electrical supply and starting components.
2. The Circuit Breaker Trips Repeatedly
Does your submersible pump trip the circuit breaker whenever you try to start it?
Repeated tripping can indicate excessive electrical current, a short circuit, or an insulation fault.
When motor windings become damaged, electrical current may flow through unintended paths, causing protective devices to disconnect the supply.
A blocked impeller, damaged cable, or other electrical fault can also cause tripping.
Avoid repeatedly resetting the breaker because doing so may increase the risk of equipment damage or electrical hazards.
3. The Pump Runs but Does Not Deliver Water
A pump that runs without delivering water may appear to have a damaged motor.
However, this symptom alone does not confirm motor burnout.
Possible causes include:
- Low water level in the borewell
- Blocked suction strainer or pump inlet
- Damaged impeller
- Leakage in the delivery pipe
- Incorrect motor rotation in a three phase system
- Air lock in the pump or delivery pipe
- Mechanical damage inside the pump
If the motor is running normally, the problem may be related to the hydraulic components rather than the motor windings.
4. Unusual Humming or Vibrations
A submersible pump normally operates with relatively steady sound and vibration.
If the motor produces an unusual humming sound but does not start, it may be struggling to rotate.
This can happen because of a starting circuit fault, low voltage, damaged bearings, or a jammed pump.
Excessive vibration may also indicate worn mechanical components.
These symptoms should be investigated promptly because continued operation can lead to overheating and further motor damage.
5. The Motor Draws Excessive Current
Every submersible pump motor has a rated operating current based on its design and operating conditions.
If the motor consistently draws more current than expected, it may be overloaded or experiencing an electrical problem.
Possible reasons include low voltage, mechanical resistance, incorrect electrical connections, or winding damage.
A technician can measure the current using suitable testing equipment and compare it with the manufacturer’s specifications.
Excessive current is a warning sign, but it is not enough by itself to confirm that the motor has burnt out.
6. The Pump Stops After Running for a Short Time
A pump that starts normally but stops after a few minutes may be overheating.
Some motor protection systems automatically disconnect the electrical supply when excessive temperature or current is detected.
Possible causes include insufficient motor cooling, low water levels, frequent starting, or electrical overload.
If the pump repeatedly stops during operation, it should be inspected before being restarted.

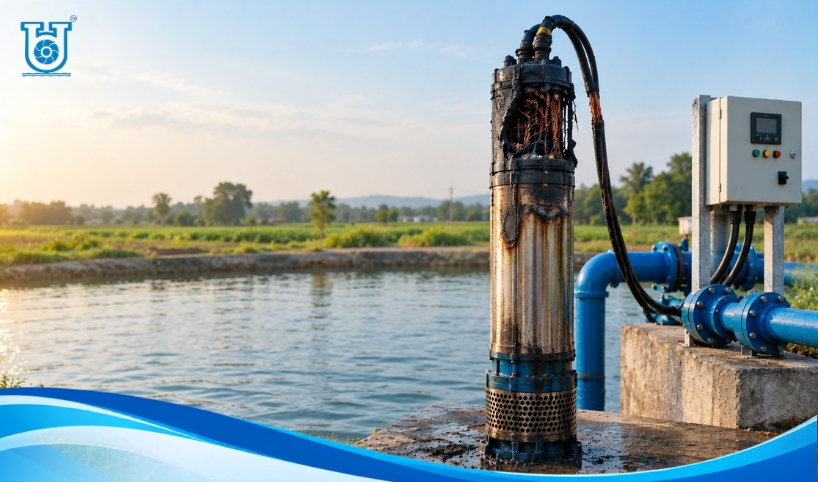

7. Burnt Smell or Visible Winding Damage
A burnt smell, discoloured winding insulation, or visibly damaged electrical components may indicate serious overheating.
However, because a submersible motor operates underwater, these signs are generally difficult to detect without removing and inspecting the equipment.
A burnt smell from the control panel may also originate from a damaged capacitor, contactor, or wiring rather than the motor itself.
Visual inspection should be carried out only after the equipment has been safely isolated from the electrical supply.
How to Check If a Submersible Pump Motor Is Burnt
Identifying a burnt motor requires more than observing the symptoms. Proper electrical testing helps distinguish motor damage from other faults.
Step 1: Check the Power Supply
A qualified technician should verify that the motor is receiving the correct voltage and that the control panel, protective devices, and electrical connections are functioning properly.
Step 2: Inspect the Motor Cable
Damaged insulation, loose connections, or water entering electrical joints can prevent the motor from operating correctly.
Cable faults may produce symptoms similar to motor winding failure.
Step 3: Test Motor Winding Resistance
A technician can use a multimeter or suitable resistance testing instrument to measure winding resistance.
An open circuit, unexpected resistance difference, or unusually low resistance may indicate winding damage. Results must be compared with the motor manufacturer’s specifications.
Step 4: Perform an Insulation Resistance Test
An insulation resistance tester can help identify insulation deterioration or leakage between the motor windings and earth.
The test voltage and procedure must follow the manufacturer’s instructions, with sensitive electronic components disconnected where required.
Step 5: Inspect the Motor and Pump
If electrical tests indicate a serious fault, the pump may need to be removed from the borewell for further examination.
A trained technician can inspect the windings, bearings, seals, and other components to determine whether repair or replacement is appropriate.
Important: Never attempt electrical testing on a submerged motor while it is connected to a live power supply.
What Causes a Submersible Pump Motor to Burn Out?
Several operating conditions can damage a submersible pump motor.
- Low or unstable voltage: An incorrect voltage supply can increase motor heating and affect performance.
- Dry running: Insufficient water around the motor may reduce cooling and cause overheating, depending on the motor design.
- Frequent starting: Repeated starting places additional electrical and thermal stress on the motor.
- Overloading: A jammed impeller, worn bearings, or unsuitable operating conditions can increase the motor’s workload.
- Poor installation: Incorrect cable sizing, improper electrical connections, and inadequate protection can contribute to motor failure.
Regular maintenance and correctly selected protection devices can help reduce these risks.
Can a Burnt Submersible Pump Motor Be Repaired?
Whether a burnt motor can be repaired depends on its construction and the extent of the damage.
Some motor designs allow professional rewinding or component replacement. Other sealed motor designs may require complete replacement.
Before deciding, consider the motor’s age, repair cost, availability of replacement parts, and overall condition.
If the damage is extensive, replacing the motor may offer better long term reliability.
How to Prevent Submersible Pump Motor Burnout
Proper operation and maintenance can help extend motor life.
- Use suitable overload and dry running protection.
- Maintain the recommended water level and motor cooling conditions.
- Check voltage and electrical connections regularly.
- Avoid excessive starting and stopping.
- Select the correct pump and motor for the application.
- Arrange professional inspection when unusual symptoms appear.
For agricultural, domestic, and industrial applications, choosing a properly sized submersible pump and motor is important for reliable water supply.
Conclusion
A burnt submersible pump motor can cause sudden water supply problems, but symptoms such as tripping, humming, or reduced water flow do not always confirm motor burnout.
Electrical testing, proper diagnosis, and timely maintenance are essential to identify the actual problem and avoid unnecessary replacement.
If your motor repeatedly stops or shows signs of electrical failure, switch off the equipment and arrange an inspection by a qualified technician.
For new installations or replacement requirements, explore the pumping solutions available from Unnati Pumps to find a suitable option for your water supply application.
Frequently Asked Questions
1. How can I tell if my submersible pump motor is burnt?
Common signs include failure to start, repeated breaker tripping, excessive current, and overheating. Electrical winding and insulation resistance tests are needed to confirm motor damage.
2. Can a submersible pump motor burn out because of low voltage?
Yes. Low voltage can cause excessive heating under certain operating conditions, particularly when the motor struggles to start or operates under heavy load.
3. Will a burnt submersible pump motor still run?
A severely burnt motor may stop completely. However, a motor with developing winding or insulation damage might still operate temporarily before failing.
4. Can I test a submersible pump motor with a multimeter?
A multimeter can help a qualified technician check winding resistance and continuity. However, additional insulation resistance testing may be necessary to identify faults that a standard multimeter cannot detect.
5. Should I repair or replace a burnt submersible motor?
The decision depends on motor design, damage severity, repair cost, and availability of replacement parts. A professional assessment can help determine the suitable option.
